Industriële Schroef Type 30 Ton Watergekoelde Schroef Chiller Prijs

  • >=1 eenheden
    US$ 9.000,00
modelnummer:
MG-40WS
Koeling vermogen( kw):
34 ton
Levertijd::
Hoeveelheid(eenheden) 1 - 1 >1
Geschatte tijd (in dagen) 20 Onderhandelbaar
rapport Verdachte Activiteit
Overzicht:
Snelle gegevens
Afmetingen( l* w* h):
2500*750*1500
gewicht:
700 KG
garantie:
1 jaar
After- sales service:
Gratis onderdelen, Video technische ondersteuning, Veld installatie, inbedrijfstelling en training, Veld onderhoud en reparatie service, Online ondersteuning
Toepasselijk Industrie:
Fabriek, Food & Beverage Fabriek, Boerderijen, Bouw werkt, Energie & Mining
staat:
Nieuwe en Hot
type:
Watergekoeld
plaats van herkomst:
Shandong, China
naam van het merk:
MGREENBELT
spanning:
220 V/380 V/415 V/460 V
certificering:
CE, RoHS, UL
Compressor type:
Semi-hermetische schroef type
Condensor:
Shell en tube
Koelmiddel:
R22/R134a/R410a/R407c
Compressor start manier:
Y-delta
Verdamper:
Shell en tube
Energie bereik:
25,50, 75,100 (%)
Compressor merk:
Bitzer/Hanbell
Water koeltoren:
Supply
Toepassing:
Plastic industrie, voedsel, drank, chemische
Garantie:
12 maanden
Leveringsvermogen
Leveringsvermogen:
300 Set/Sets per Year
Verpakking en verzending
Verpakkingsdetails
Internationale houten case
Port
Qingdao,Shenzhen,Guangzhou,Shanghai,Ningbo
Levertijd: :
Hoeveelheid(eenheden) 1 - 1 >1
Geschatte tijd (in dagen) 20 Te overleggen
Product Description

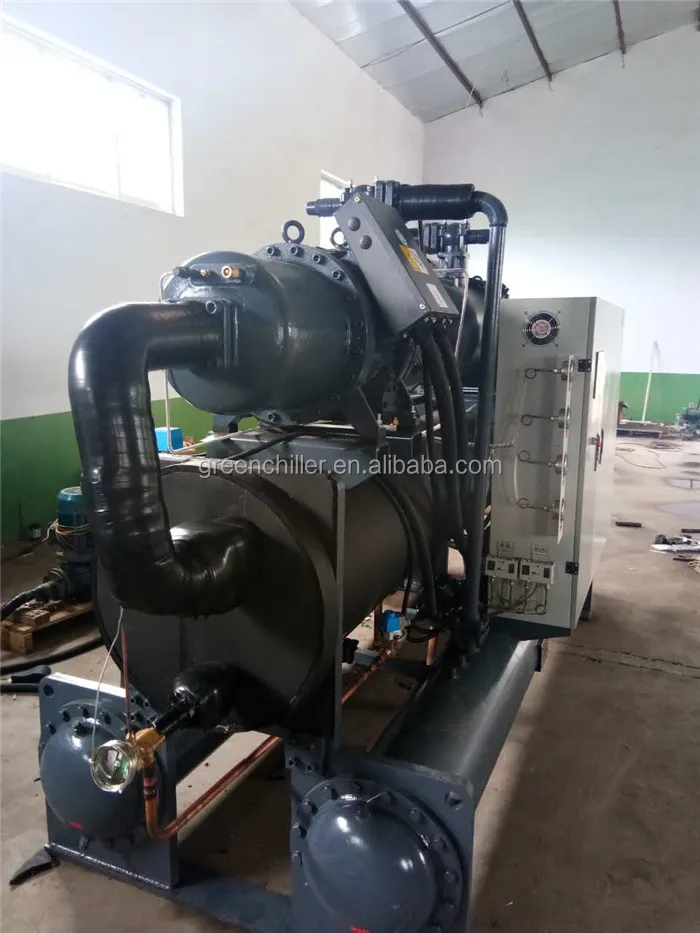

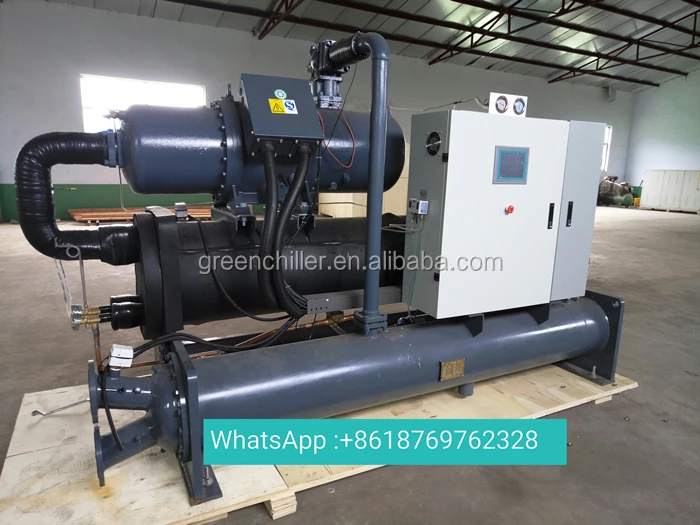

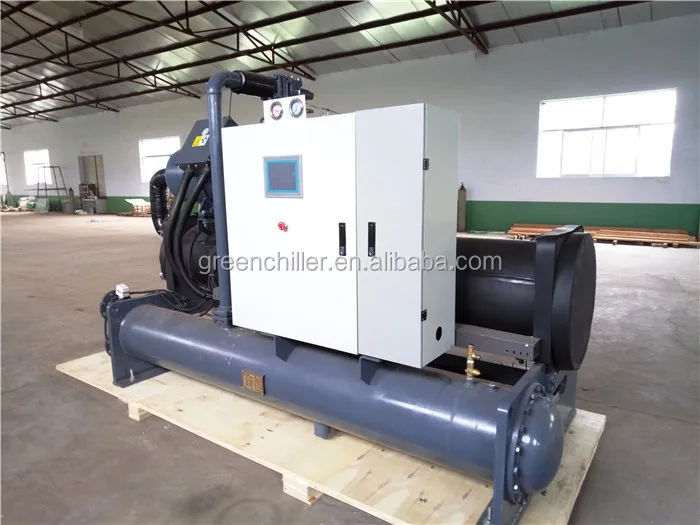

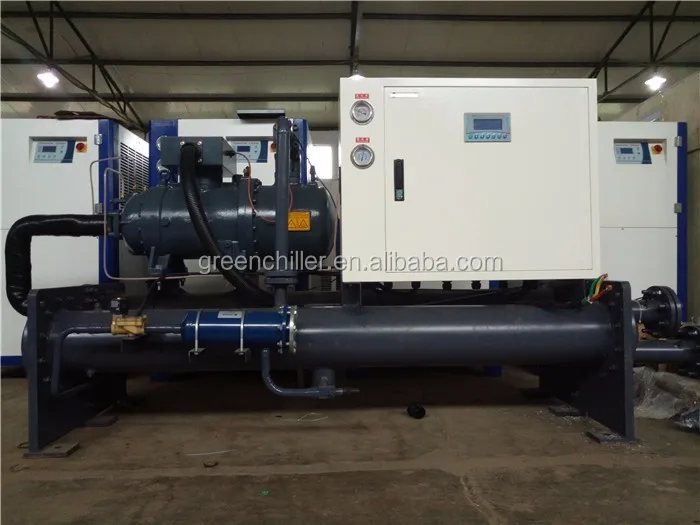

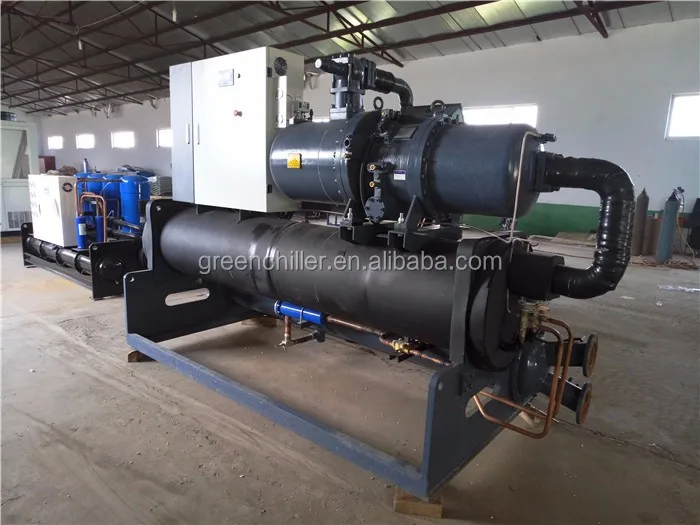

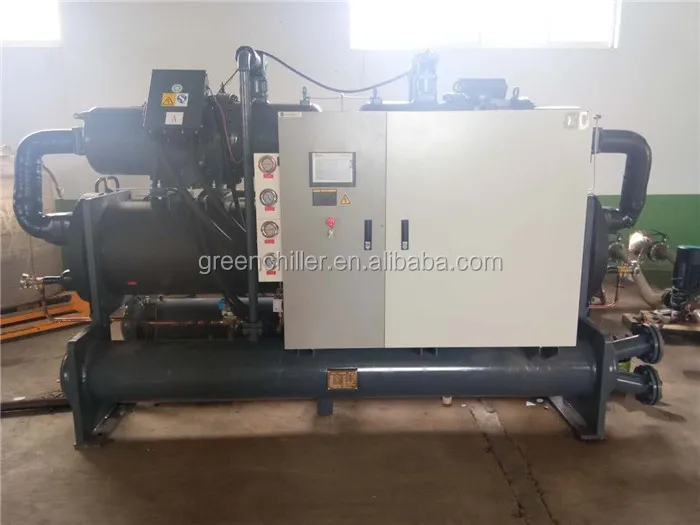

Main Features of 30 ton water cooled chiller

Cooling capacity: 88kw – 800kw( 25 tons – 225 tons).
Refrigerant R22, R407C, R134A or R410A.

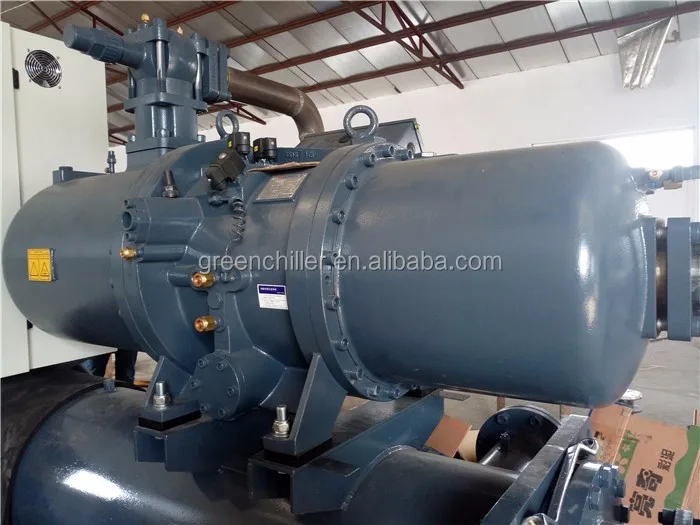

Screw compressors normally employed for medium to large cooling capacity, BITZER, HANBELL for options, the output power of screw compressor can be controlled automatically by control system. Furthermore, there are four phases for choosing: 25%-50%-75%-100%. And the motor of the screw compressor is star delta start to reduce the impact on power grid.

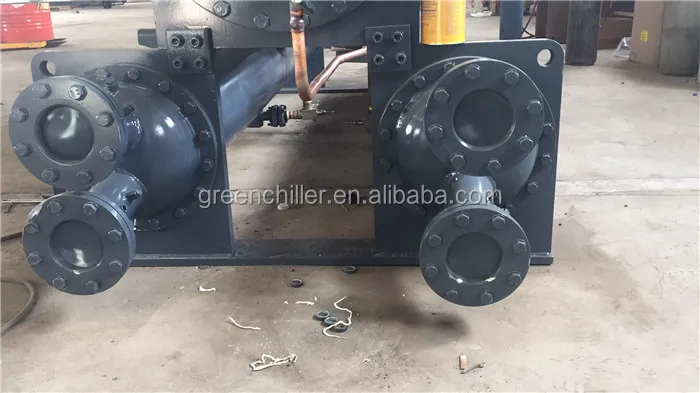

Shell and Tube type condenser is normally called water cooled type,this series chiller need to employ water cooling tower to discharge the heat, which is always used for large cooling capacity or the local place temperature is higher than 40 degree celsius.
Adopt microcomputer controller, display the temperature ,protect, fault code and etc to the control panel, easy to operate, PLC for options.
The electric components we use SCHNEIDER brand, as you know the electricity is very important for the chiller, also affect the safety of the operator, schneider is what we trust.
High efficient shell and tube type evaporator and condenser to save 30% energy.
Refrigerating system welded with oxygen free method ,to reduce oxides and ensure the smooth surface.

Product Application of 30 ton water cooled chiller

Mgreenbelt has been working in refrigeration water chiller field for decades, with its product widely used in many industries, such as plastic and rubber processing industry, chemical and pharmaceutical industry, food and beverage industry, and so on. So Please kindly contact us if you have project need water cooling.

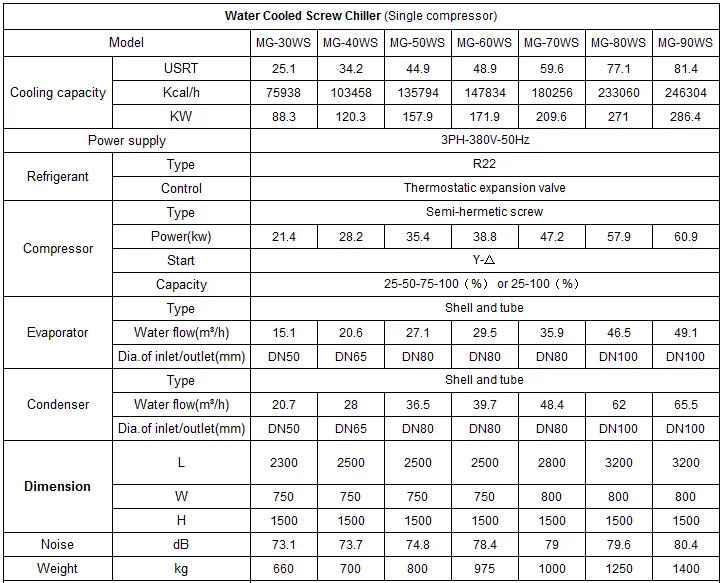

model
Unit
MG-40WS

Nominal cooling capacity
KW
120
KCAL/HR
103458
Power  supply
3phase,380v,50hz/60hz or 3phase,220v/480v,60hz
Refrigerant
Type
R22/R407C/R404A
Control Type
Thermostatic expansion valve


Copmpressor
Type
Semi-hermetic screw type
Power(kw)
28.2
Energy control type
25,50,75,100(%)
Start method
Y-delta


Evaporator
Type
Shell and tube
Flow rate (m3/h)
20.6
Type
Shell and tube
Condenser
Type
Shell and tube
Cooling water flow(m3/h)
28
Machine size
LxWxH(mm)
2500*750*1500
Neight weight
kg
700

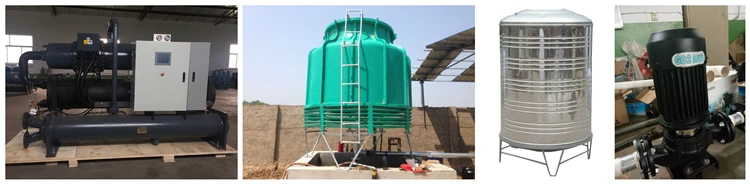

Provide complete system

1- water chiller

2- cooling tower

3- water tank

4- pumps

5- piping

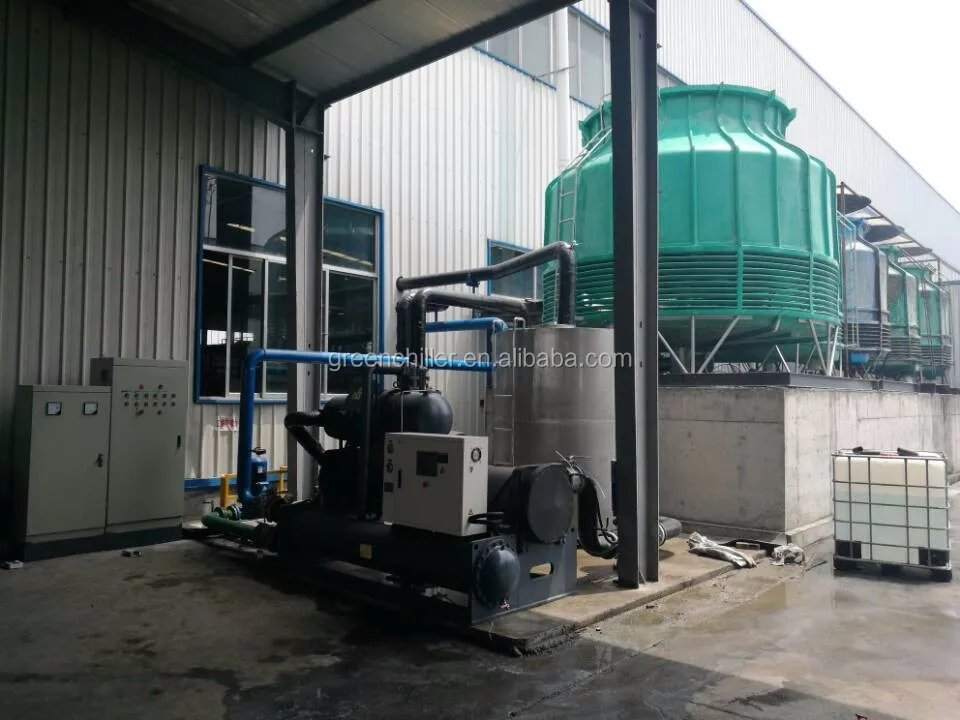

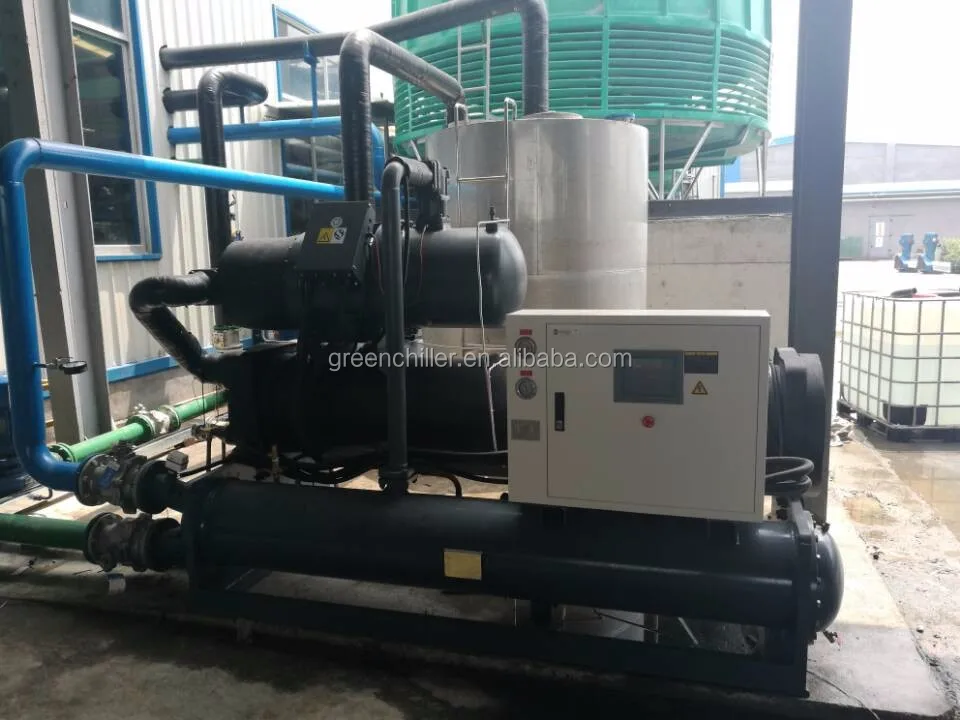

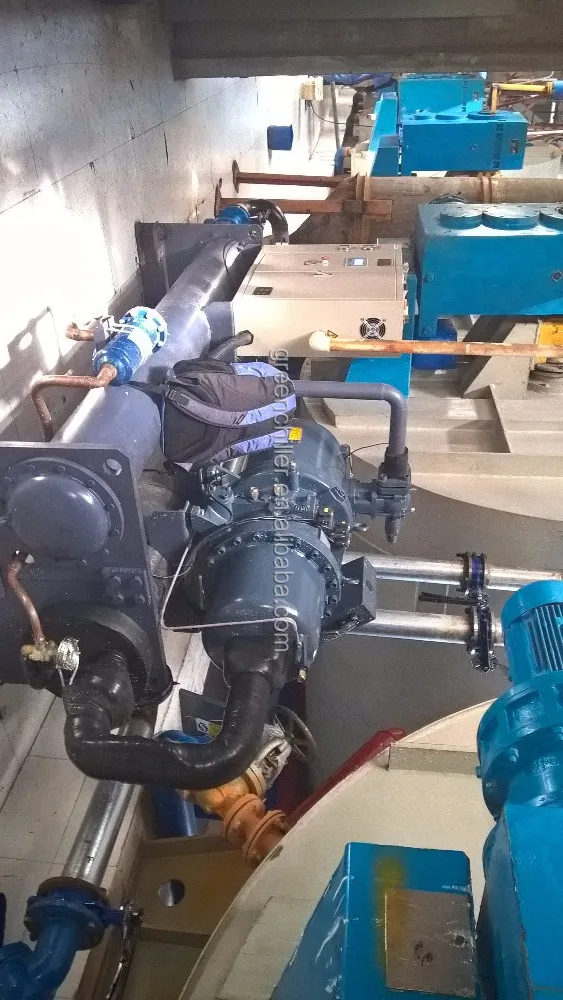

Customer Using Site
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

*Discussion and Negotiation

* View our Factory

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

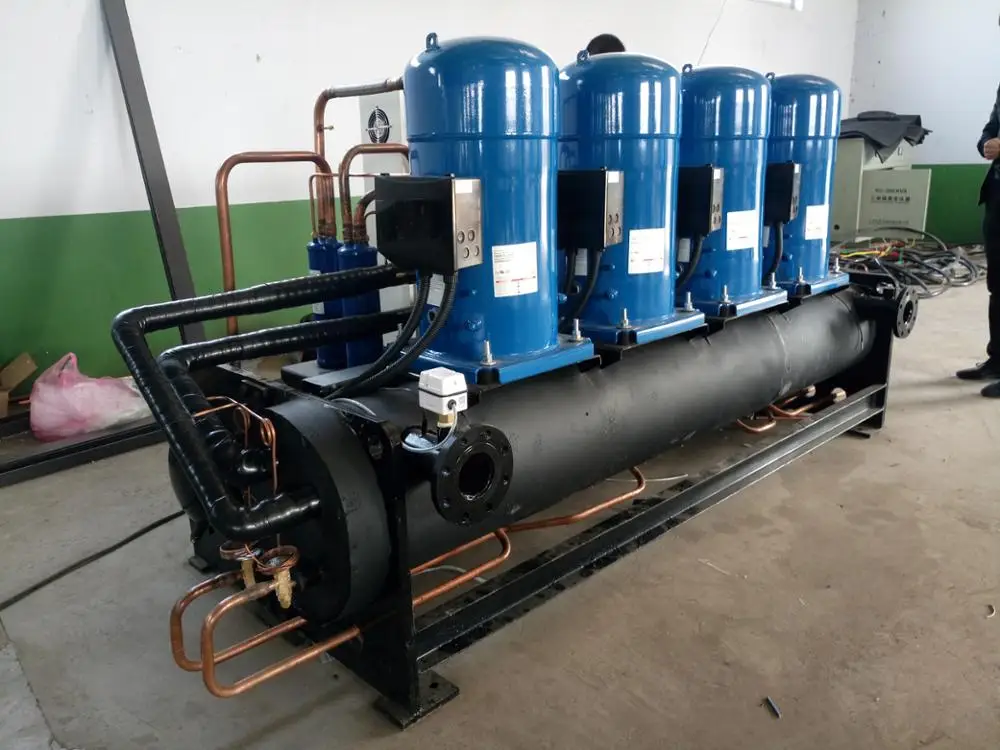

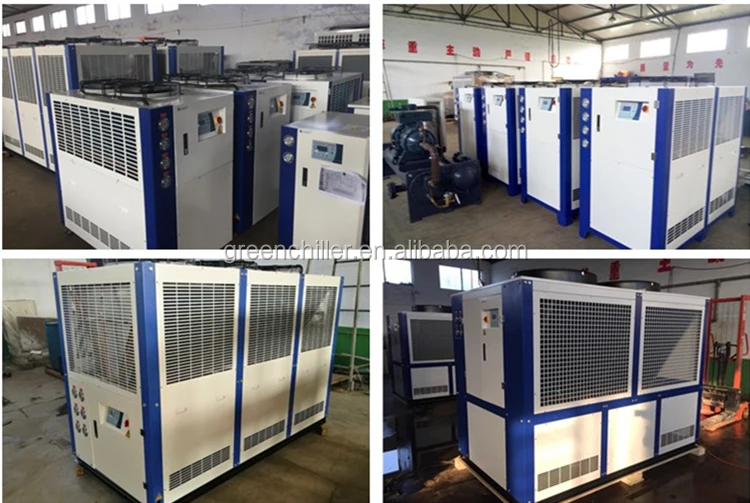

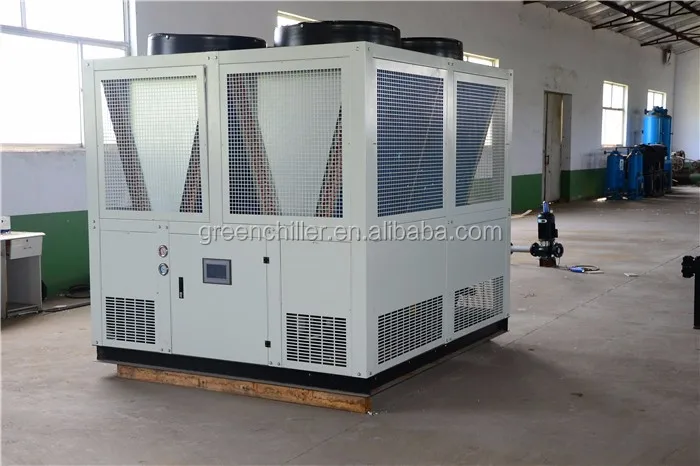

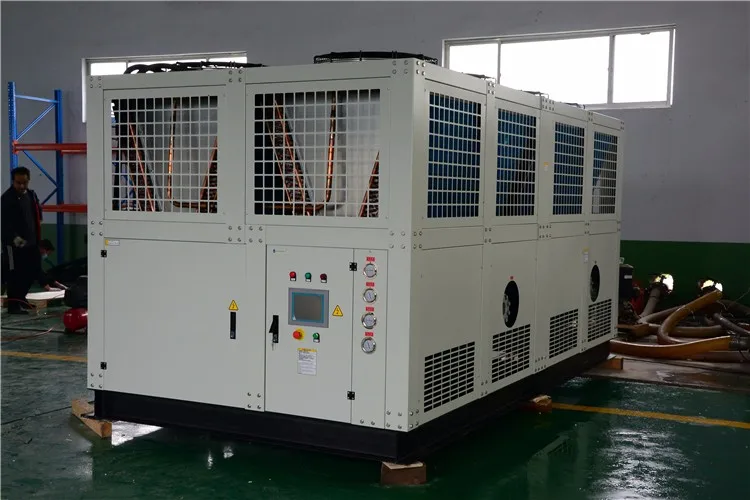

Our Company Product
FAQ

Q1: How to choose the right chiller?
A1:
1. Which place these chiller need to be installed.
2. Cooling capacity
3. Flow rate
4. Inlet/outlet temperature
5. Type of chiller (air-cooled/water-cooled)
6. Any special requirements
Q2: What power supply chiller you can produce?

A2: Our standard power supply is 3phase-380V-50Hz, Customzied different for optaions, like 3phase- 415V,440V,460V,480V,- 50Hz or 60Hz
Q3:What is your Payment terms?
A3:30% deposit by TT, the balance will be paid by TT before delivery;
Or 100% Irrevocable non-transferred LC at sight
Q4:What refrigerant you can supply?
A4: We have R22, Eeo friendly R407c, R410a, R134a,R404a depends on your choice.
Q5:This model and type chiller is not what I need, what should I do?
A5: For any urgent price, contact us below by any way.

Ms Libra Zhang
M: 008617686681007
Whatsapp/Viber : +8618769762328
E: libra at mgreenbelt dot com
Skype: libra5813
QQ: 2053526507

wechat :18769762328
