cnc plasma cutter / square round tube pipe steel cnc flame plasma cutting machine

  • >=1 sets
    US$ 12.000,00
Effectieve Snijden Bereik (mm):
Andere
Voorbeelden:
US$ 12.000,00 /Set | 1 Set (Min. Order) | Voorbeelden kopen
Verzending:
Ondersteuning Zeevracht
Levertijd::
Hoeveelheid(sets) 1 - 1 >1
Geschatte tijd (in dagen) 20 Onderhandelbaar
Maatwerk:
Aangepast logo (Min. Order: 1 sets)
Aangepaste verpakking (Min. Order: 1 sets)

Meer

Afbeeldingen bewerken (Min. Order: 1 sets) Minder
Verdachte activiteit rapporteren
Overzicht:
Snelle gegevens
Motortype:
Servomotor
staat:
Nieuw
plaats van herkomst:
Shandong, China
naam van het merk:
HUAFEI
modelnummer:
QGVI
spanning:
380V
nominaal vermogen:
5.5Kw
Afmetingen( l* w* h):
12000mm
certificering:
CE ISO
Gewicht (KG):
2000, 2000
garantie:
1 Jaar
After- sales service:
Gratis Onderdelen, Veld installatie, inbedrijfstelling en training, Veld onderhoud en reparatie service, Online ondersteuning, Video technische ondersteuning
Key Selling Punten:
High-nauwkeurigheid
Toepasselijk Industrie:
Fabriek
Na Garantie Service:
Video technische ondersteuning, Online ondersteuning, Onderdelen, Veld onderhoud en reparatie service
Lokale Service Locatie:
Geen
Showroom Locatie:
Geen
Marketing Type:
Nieuw Product 2020
Machines Testrapport:
Verstrekt
Video Uitgaande-Inspectie:
Verstrekt
Garantie Van Core Componenten:
1 Jaar
Core Componenten:
Motor, Plc
Naam:
Plasma Torch Snijden Staal Pijp Profiel Cnc Machine
Snijden modus:
Plasma Snijden + Vlam Snijden
Diameter:
50-800mm
Lengte:
Max 12000mm
Laden capaciteit:
Max 6t
Controle systeem:
IPC CNC
Controle as:
3-5
Bedieningspaneel:
Industriële touch screen HMI
Drive modus:
AC servo motor
Schuine hoek:
± 45 ° (instelbaar)
Spanning:
380V
Nominaal Vermogen:
5.5Kw
Dimensie (L * W * H):
12000mm
Certificering:
CE ISO
Leveringsvermogen
Leveringsvermogen:
200 Set/Sets per Year
Verpakking en verzending
Verpakkingsdetails
Plastic film cover, of multiplex case.
Port
Qingdao
Levertijd: :
Hoeveelheid(Sets) 1 - 1 >1
Geschatte tijd (in dagen) 20 Te overleggen
Products Description

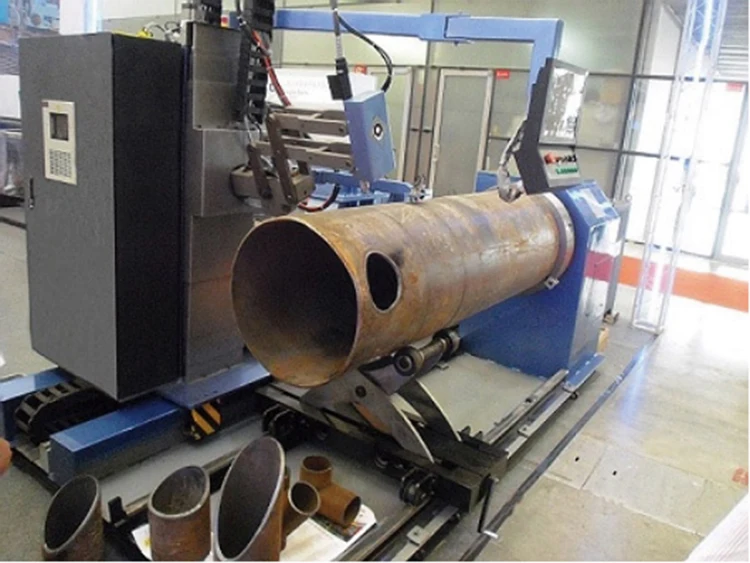

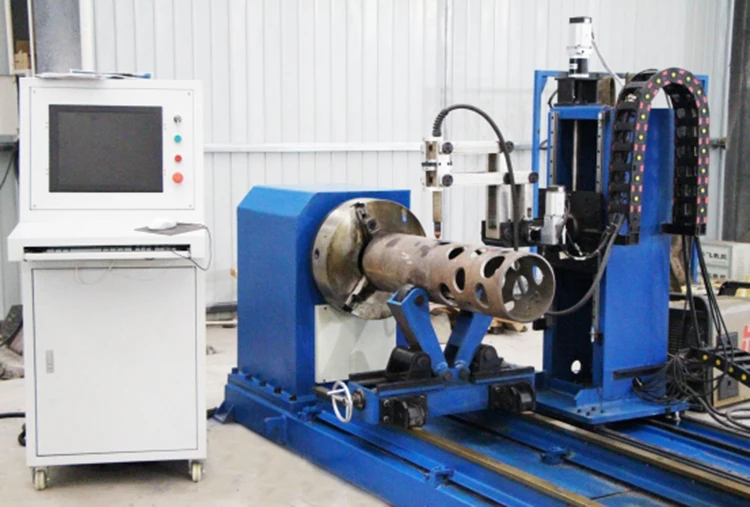

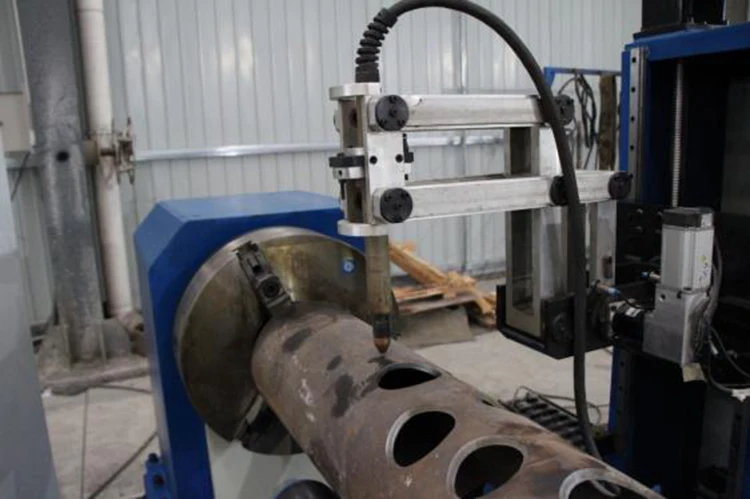

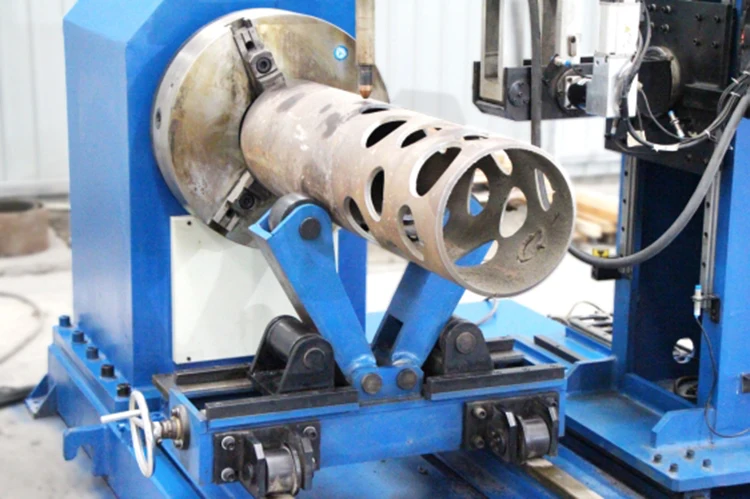

CNC plasma pipe cutting machine
The CNC plasma pipe cutting machine is widely used in cutting pipeline structural parts in construction, chemical industry, shipbuilding, mechanical engineering, metallurgy, electric power, and other industries. CNC plasma pipe cutting machine is very convenient for cutting and processing such workpieces. It does not need an operator's calculation and programming. It only needs to input parameters such as pipe radius and intersecting angle of the pipeline intersecting system. The CNC plasma pipe cutting machine can automatically cut intersecting lines, intersecting line hole, and welding groove of the pipeline. The numerical control CNC plasma pipe cutting machine adopts digital control. The number of control axes of the machine is two to six axes. Each type of machine has the functions of cutting various intersecting lines and holes, cutting fixed-angle grooves, fixed-point grooves, variable-angle grooves, non-circularity, and eccentricity compensation of pipes.
Product Paramenters
Product Model
QGVI-500

QGVI-B500

Number of CNC Control Axis
Three Axis and Two Linkages

Five Axis and Four Linkages

Spindle rotation (axis code A)
Free Rotation



Move The Torch Left and Right (axle code X)
Optional (depending on pipe length)
The Cutting Torch Swings Left and Right (axle code U)
/

±60°

Swing Before and After Cutting Torch (axle code V)
/

±60°

Cutting Diameter
50-500mm



Cutting Pipe Length
500-12000mm



Flame Cutting Tube Thickness
5-50mm



Plasma Cutting Tube Thickness
According to The Selected Plasma Power Supply
Cutting Speed
50-1500mm/min



Moving Speed
50-1500mm/min
Motion Accuracy
6000mm/min
Memory Function of Various Cutting Programs
Cutting Data Track Holding Function
Automatic Demonstration Function of Trajectory
Copying Tracking Function

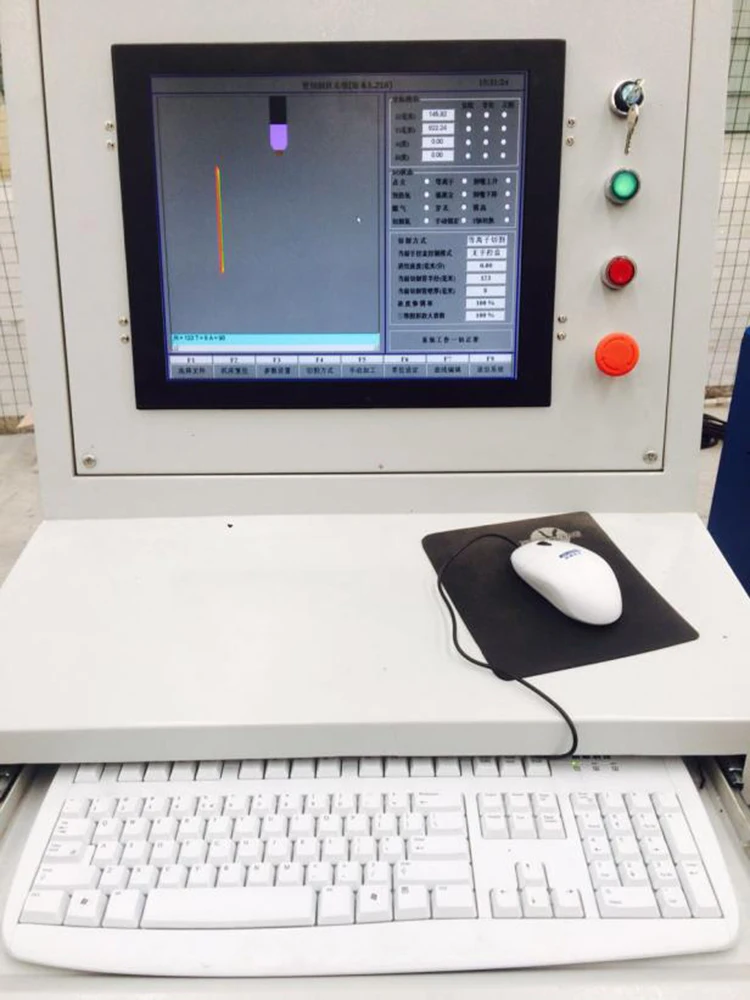

Visual and Concise Display Interface
Cutting Function of Slot Surface with Fixed Angle and Variable Angle
High Cutting Accuracy
Various Speed Control Functions

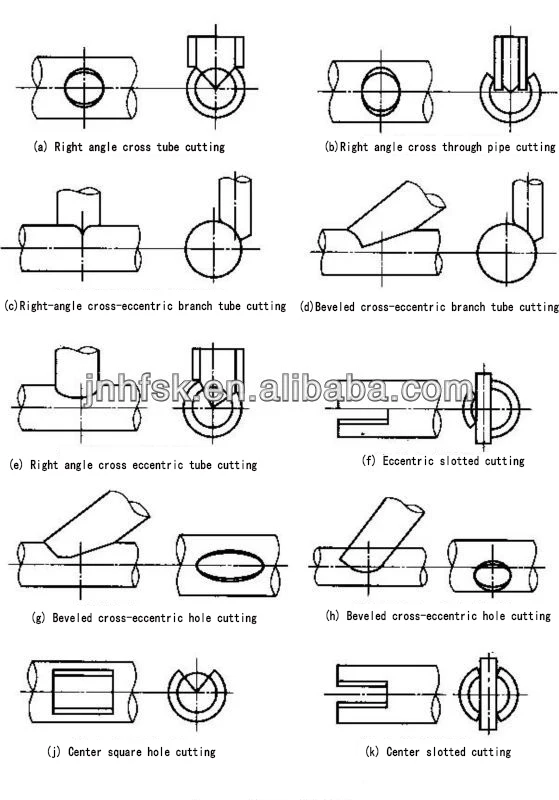

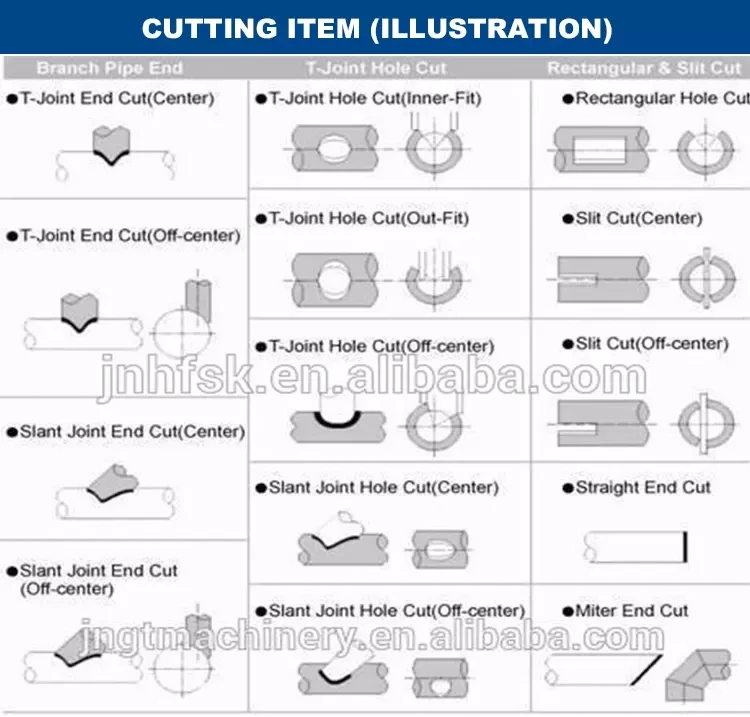

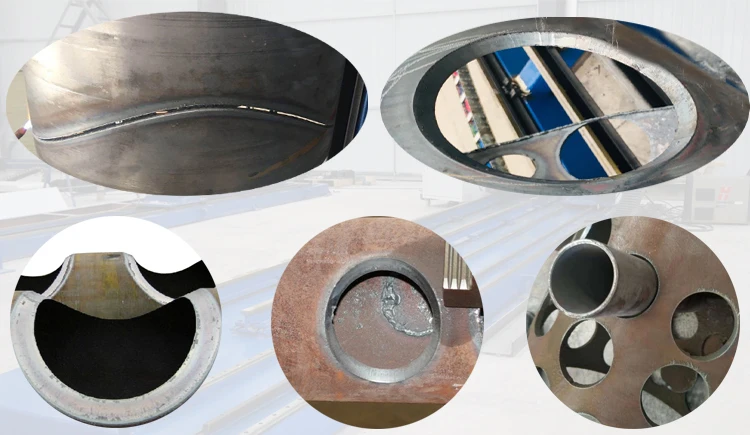

Cutting Item

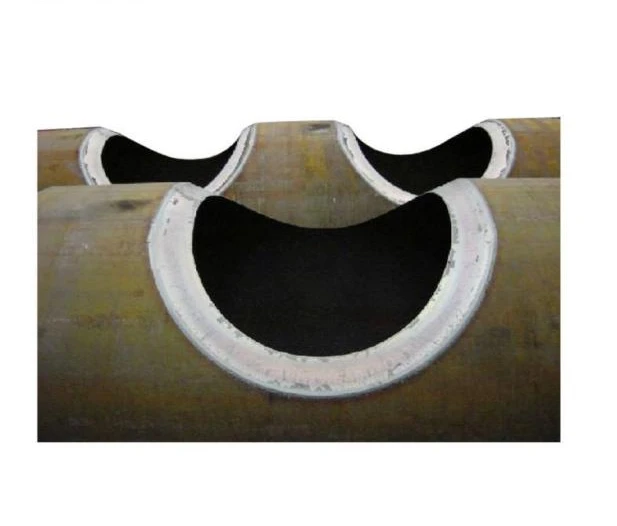

The max angle of bevel: Vertical and horizontal direction ± 60 ° Minimum cross-cutting angle: ± 30 ° Cutting speed automatic stepless variable speed regulation Continuous Cutting Set Fixed-point and fixed-angle bevel settings Vertical pipe and slope-side cutting Home bias pipe opening face cut Home bias pipe opening eccentric cutting surface Mother pipe rectangular cutting surface Mother trough control center, cutting eccentric Orthogonal mother riding a tube-type cutting openings Orthogonal mother tube insertion opening-cutting Orthogonal and oblique cut-side branch pipe Orthogonal and oblique eccentric mother pipe cutting Orthogonal and oblique eccentric cutting branches Multi-tube mother intersection pipe opening face cut Multi-pipe intersection cut-side branch pipe Possession of ocean engineering at both ends of the tube cutting bias Tube welding elbow, "shrimp" oblique section cutting pipe ovality error automatic tra.
Serial number
Key Component Name
Company
Control system
1
Number
Set
1
2

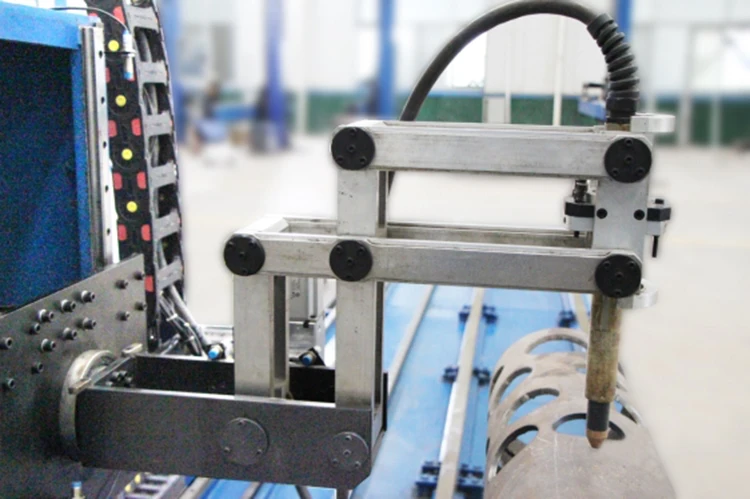

Arm system
Set
1
3
Driving device
Set
3/5
4

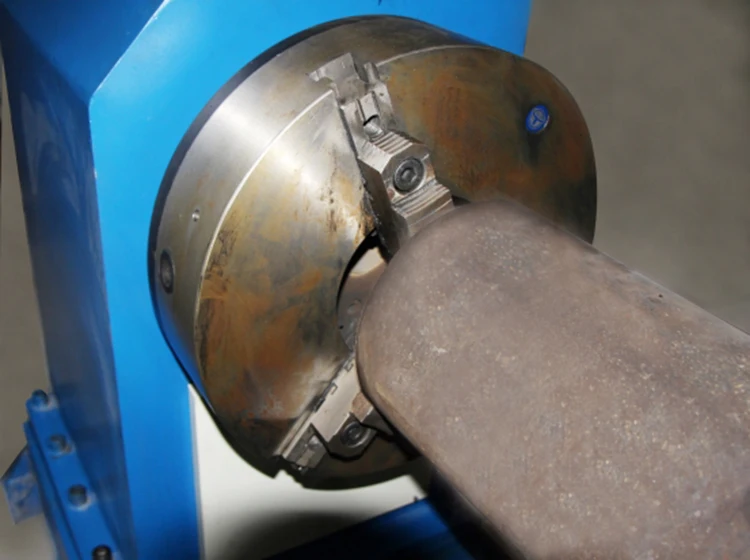

Clamping device
Set
1
5
Supporting device
Set
3
6
Guide
Set
1
7
Pneumatic system
Set
1
8
Control cabinet
Set
1
9
Operator
Set
1
Related Products
Company Profile

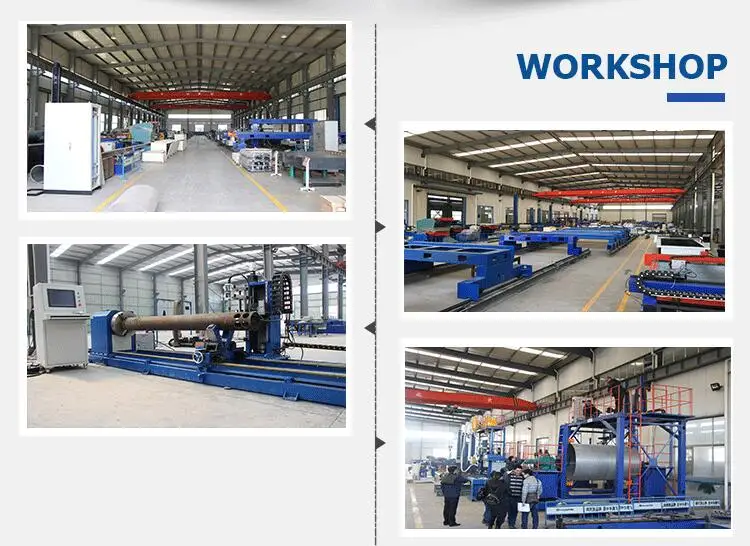

Huafei CNC Machinery Co., Ltd. factory

Since established, Jinan Huafei CNC Machine Co., Ltd. has focused on introducing and cultivating high-tech talents and takes it as a development strategy. at present, many professionals have been brought together who specialize in researching and developing of uncoiling and leveling machines, CNC welding, and cutting equipment. technical strength is always cherished as the core competitiveness of our company.
Product packaging
FAQ

1.Does your company accept customized offer, we have special need.
HUAFEI CNC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.

2.What certificate the machine in your company get?

We’ve passed the ISO9001 Quality System Approval and CE Certification.
3.Does your company accept CIF price?

CIF price includes shipping cost of cnc machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such need.
CIF price also includes marine premium which is 2‰ of 1.1*total amount.

4.What’s your methods of transportation?

For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.
5.If the machine is out-of-warranty, how to charge the cost of accessories?

For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.

6.Does MC have maintenance manual and operation manual?

Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)
