Automatic Column and Boom Welding Manipulator For Sale

  • >=1 sets
    US$ 4.000,00
modelnummer:
Voorbeelden:
US$ 8.000,00 /Set | 1 Set (Min. Order) | Voorbeelden kopen
Verzending:
Ondersteuning Zeevracht
Levertijd::
Hoeveelheid(sets) 1 - 1 >1
Geschatte tijd (in dagen) 30 Onderhandelbaar
Maatwerk:
Aangepast logo (Min. Order: 1 sets)
Aangepaste verpakking (Min. Order: 1 sets)

Meer

Afbeeldingen bewerken (Min. Order: 1 sets) Minder
Verdachte activiteit rapporteren
Overzicht:
Snelle gegevens
staat:
Nieuw
machine type:
Lassen Manipulator
Toepasselijk Industrie:
Machines Reparatie Winkels, Fabriek, Bouw werkt
Na Garantie Service:
Video technische ondersteuning, Online ondersteuning, Onderdelen, Veld onderhoud en reparatie service
Lokale Service Locatie:
Geen
Showroom Locatie:
Geen
Video Uitgaande-Inspectie:
Verstrekt
Machines Testrapport:
Verstrekt
Marketing Type:
Nieuw Product 2020
Garantie Van Core Componenten:
1 Jaar
Core Componenten:
Plc, Motor
plaats van herkomst:
Shandong, China
naam van het merk:
HAUFEI CNC
certificering:
ISO and CE
garantie:
1 Jaar
After- sales service:
Gratis Onderdelen, Veld installatie, inbedrijfstelling en training, Veld onderhoud en reparatie service, Video technische ondersteuning, Online ondersteuning
Key Selling Punten:
Hoge Productiviteit
spanning:
Standard
huidige:
Standard
nominale capaciteit:
Standard
de nominale inschakelduur:
Standard
afmetingen:
2x2/3x3/4x4/5x5/6x6/7x7/8x8
gebruik:
Pipe / Cylinder Seam Welding
Name:
Column and Boom/Welding Manipulator
Welding mode:
TIG MIG MAG SAW
Control mode:
PLC
Drive mode:
motor + reducer
Rotating mode:
none/manual/electric
Traveling mode:
none/electric trolley + guide rail
Crosswise stroke:
1000mm-8000mm
Lifting stroke:
1000mm-8000mm
Extending speed:
140-1400mm/min
Lifting speed:
850/1150mm/min
Leveringsvermogen
Leveringsvermogen:
500 Set/Sets per Year
Verpakking en verzending
Verpakkingsdetails
Multiplex case of plastic film cover
Port
Qingdao
Levertijd: :
Hoeveelheid(Sets) 1 - 1 >1
Geschatte tijd (in dagen) 30 Te overleggen
Products Description

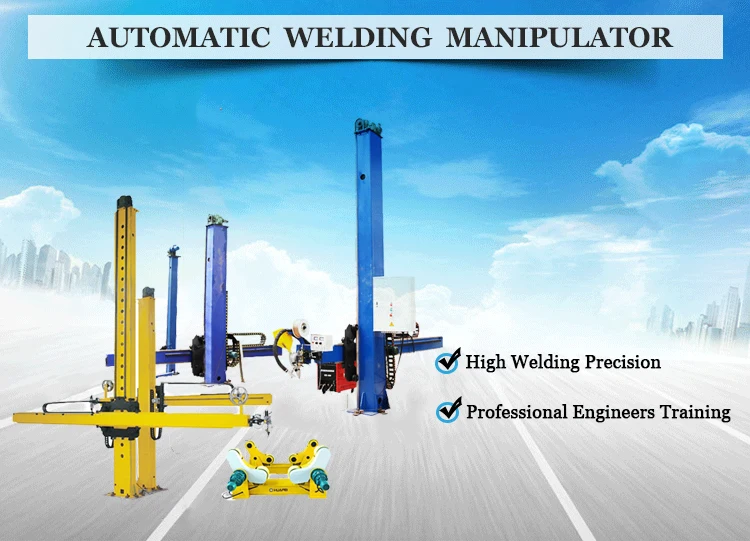

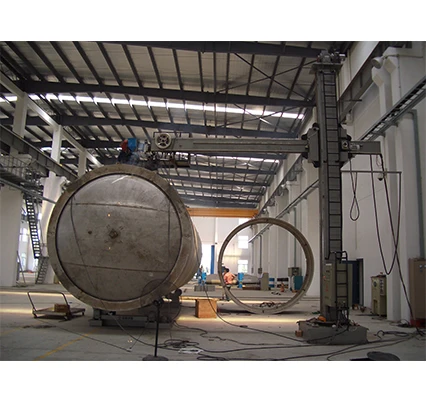

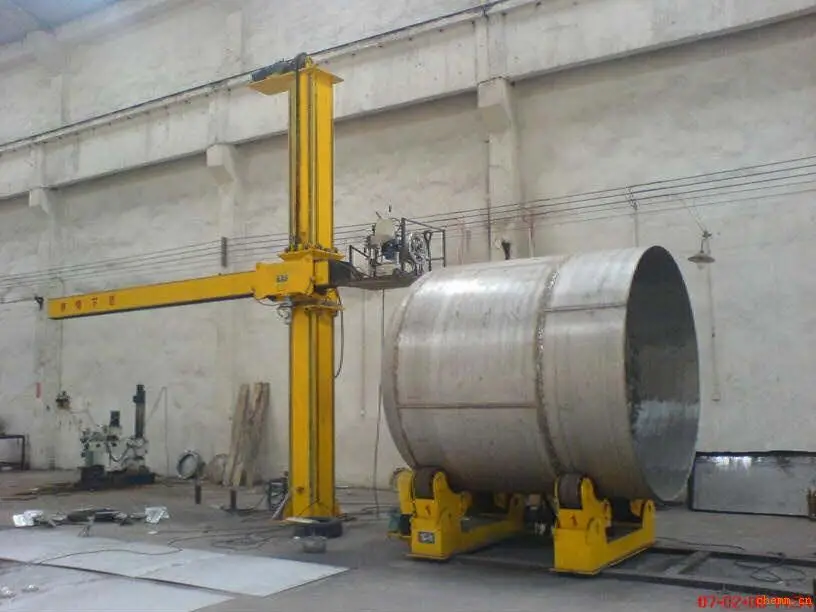

Automatic welding manipulator
The automatic welding manipulator can weld any kind of welding seam with any kind of way, applies widely to wind power equipment, pressure vessel, petrifaction, pipe, steel structure, boiler, ship-building, overlaying industries. It can be equipped with a motor-driven carriage, inside extension arm, manned device, safeguard ladder, tracker, monitor, oscillator, flux feeding, and recovery system, and so on. Its control system adopts a digitization-controlling way, can be linked with other equipment, is characterized by easy operation and precision control.
1. This Auto welding Telescopic Manipulator is also called a column boom welding manipulator.
2.we can provide you with three types of Auto welding Telescopic Manipulator for our clients: fixed, fixed, and rotating manipulator moved manipulators.
3. This Auto welding Telescopic Manipulator is mainly used to offer firm support for high-precise welding and can be also used for welding vessels, wind towers, pipelines, and many others.
4.ThisAuto welding Telescopic Manipulator can reach both of the inside small internal diameters and the outside of big diameters to weld circumferential joints as well as longitudinal joints.
5. Furthermore, we can attach more functions to this Auto welding Telescopic Manipulator, such as tracing, monitoring, and solder recycling function. And we can also design and manufacture welding manipulators by the specific demands of our clients.
Product Paramenters
Model
HC-2*2
HC-3*3
HC-4*4
HC-5*5
HC-6*6
HC-7*7
HC-8*8
Boom’s lift strok
2
3
4
5
6
7
2~4
Boom stretching strok
2~4
2.5~5
3~7
3~8
4~8
4~8
4~8
Column rotating (°)
±180
Boom lift speed (mm/min)
850
1150
Boom stretching
speed (mm/min)
140~1400
Column rotating speed (mm/min)
0.2
Total loading of boom
100
200
300
400
500
500
500
Center distance of track (optional) (mm)
2000/2500

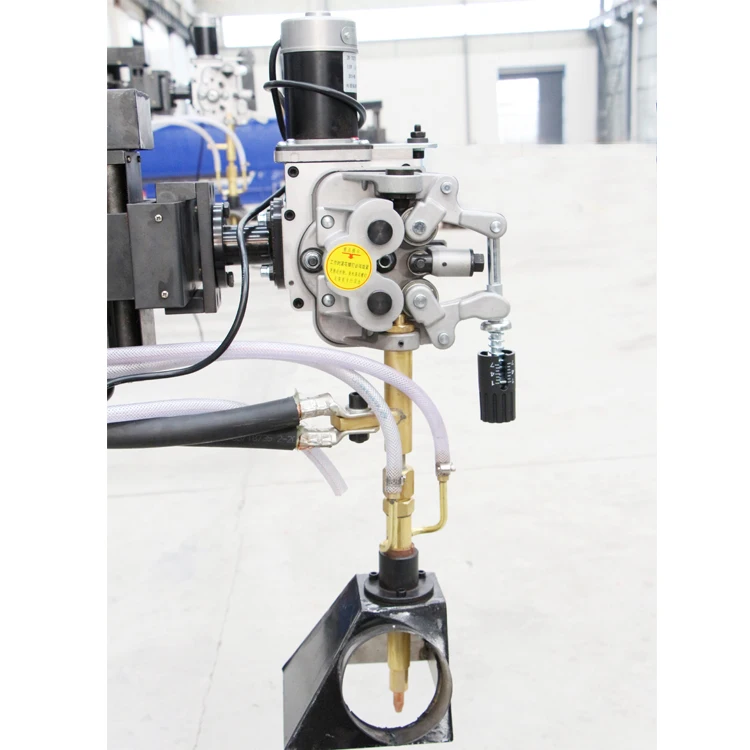

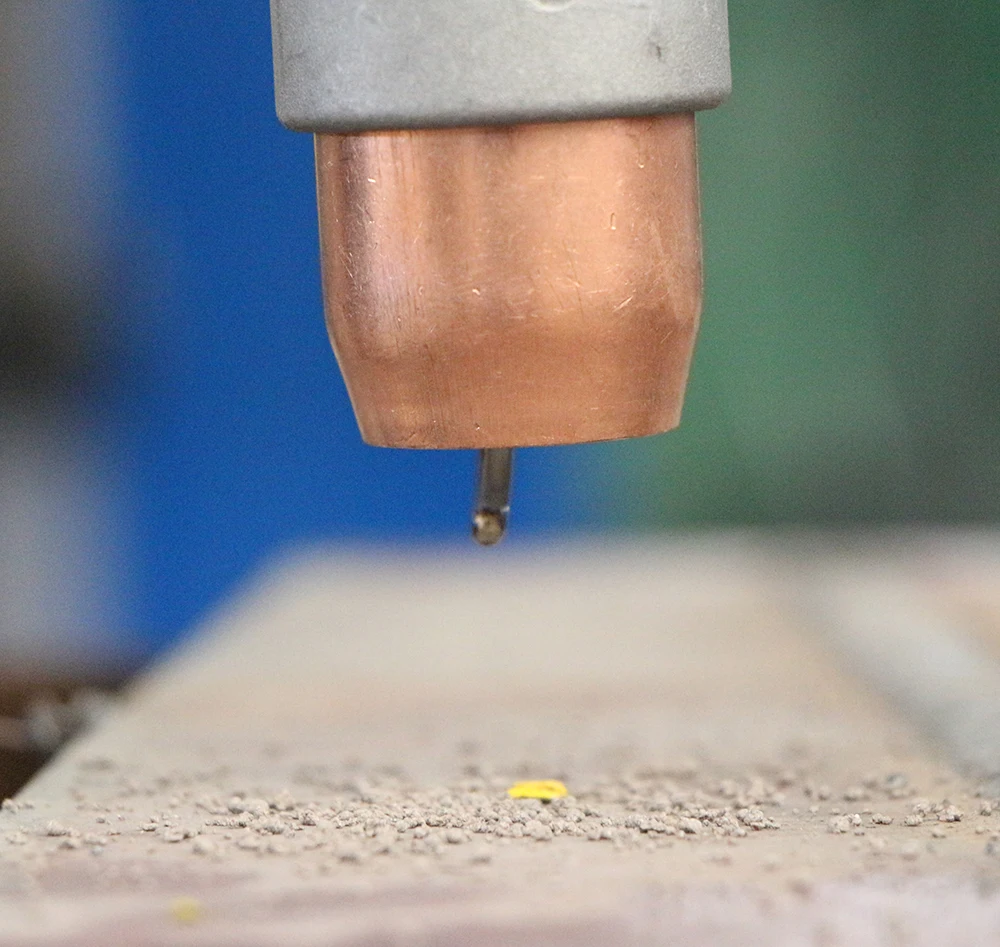

Optional welding head

The following devices are selected according to your needs.
Single wire welding head
Micro welding head
plasma welding head

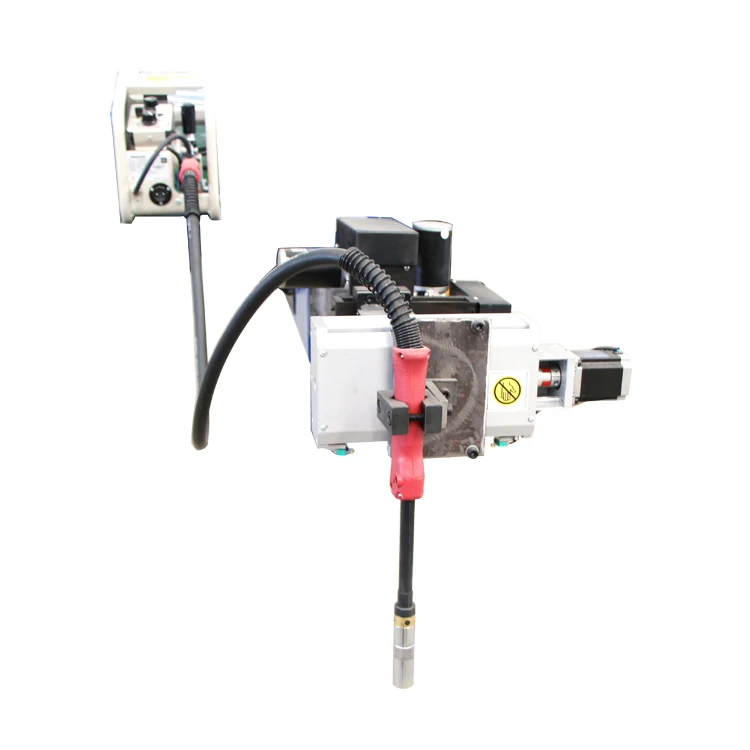

Mig/Gas protective welding head

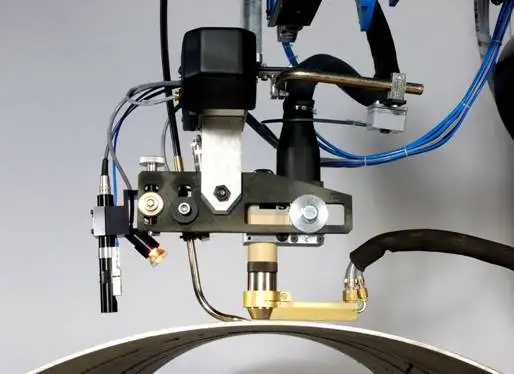

Tig welding head
Open arc welding head

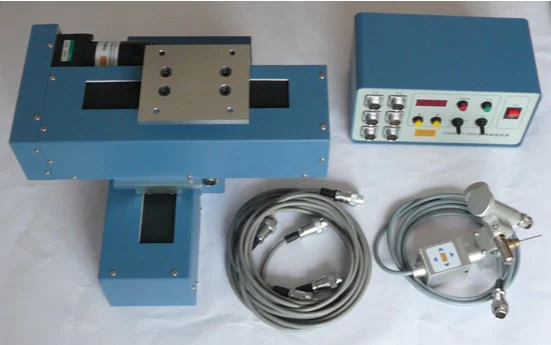

Seam tracking device

Welding seam tracker consists of a sensor probe, controller, and implementation agencies. Sensor probe contacts the workpiece, collecting the welding surface changes, through the control system to calculate, finally by implementing agencies to adjust the distance between torch and workpiece, ensure good welding quality.

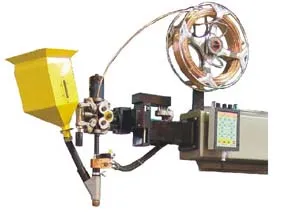

Flux Recovery Device

Flux recovery device is to use the suction of air pump assembly (import or domestic) to recovery flux to the collecting device that is not melting while welding; then put them into the feed mechanism. It is installed on the manipulator cross arm.

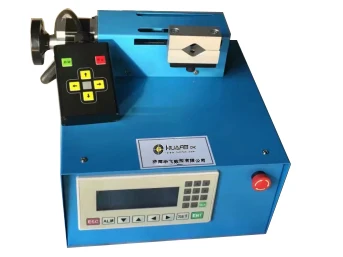

Welding oscillator
The welding oscillator consists control system, stepping motor, and drive ball screw. Through the digital signal by the computer, it can achieve various swinging track according to the welding request, the oscillating width, speed, medium point, left, and right endpoint are adjustable.

Electric rotary base

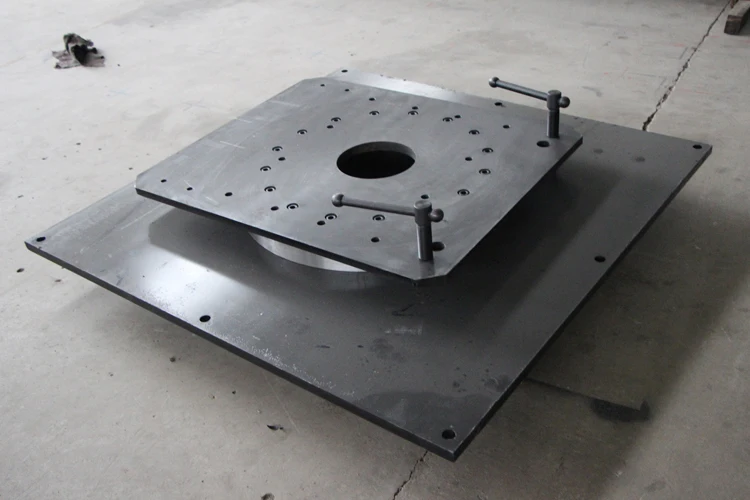

Manual rotary base

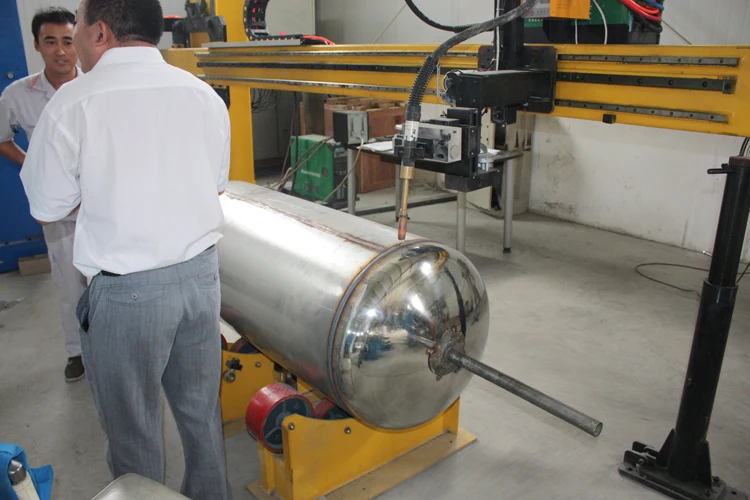

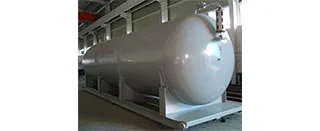

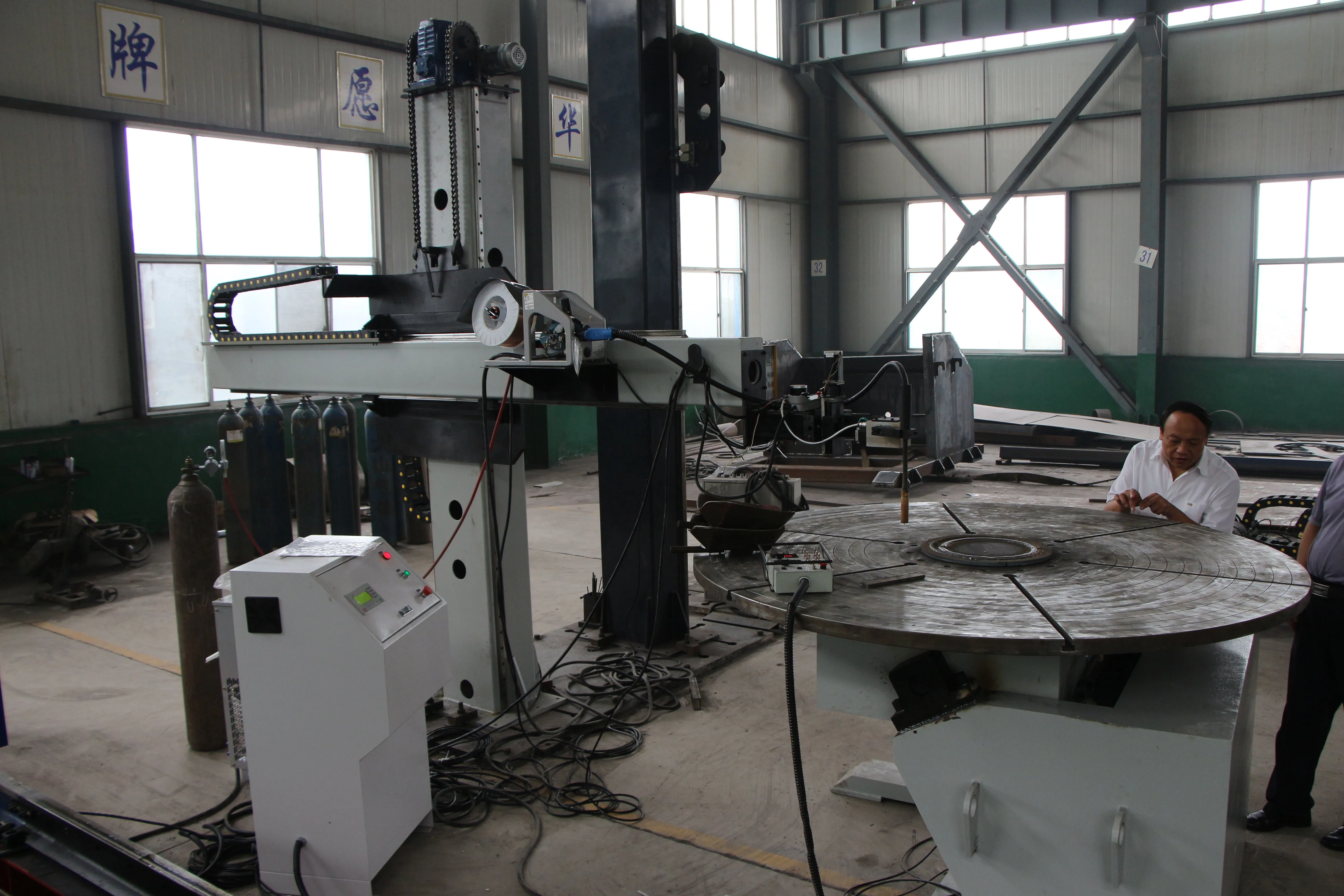

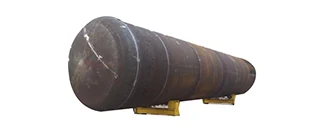

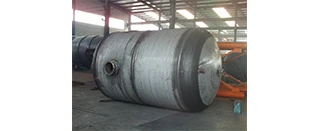

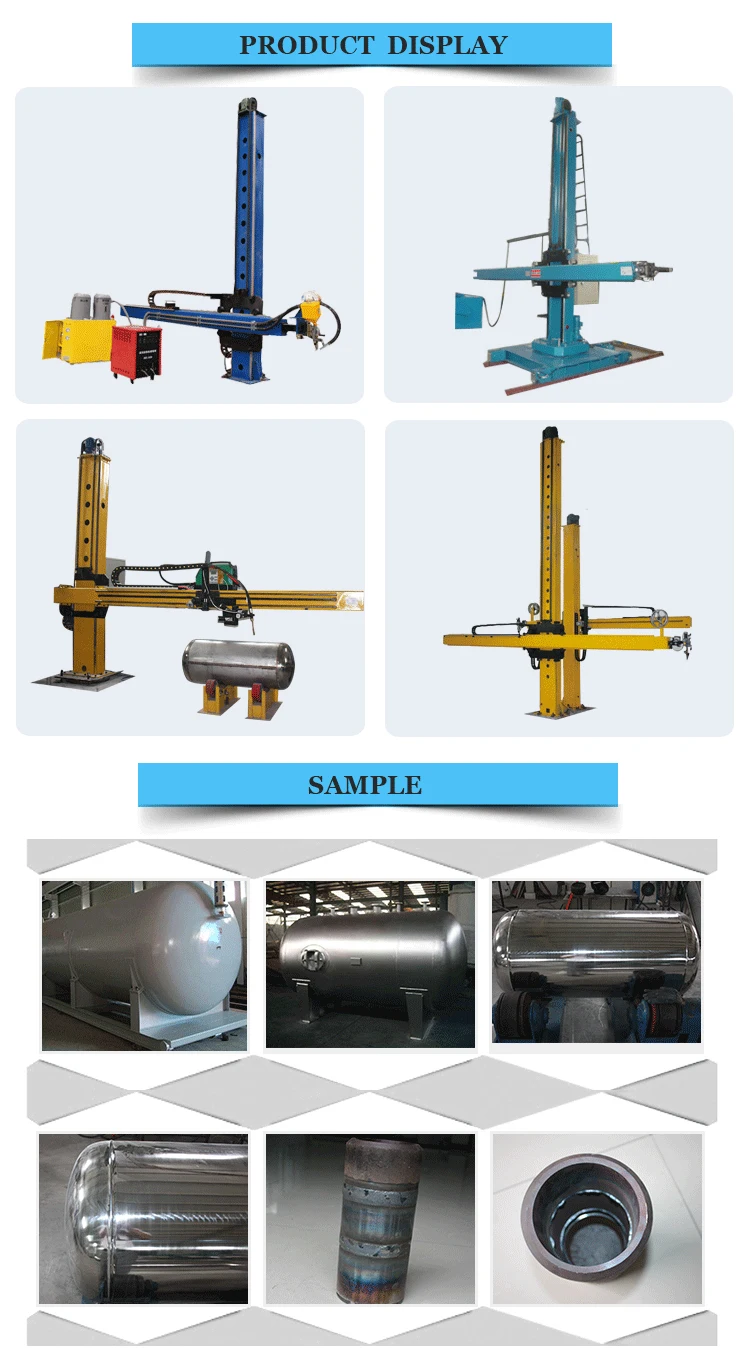

Applications
Related Products

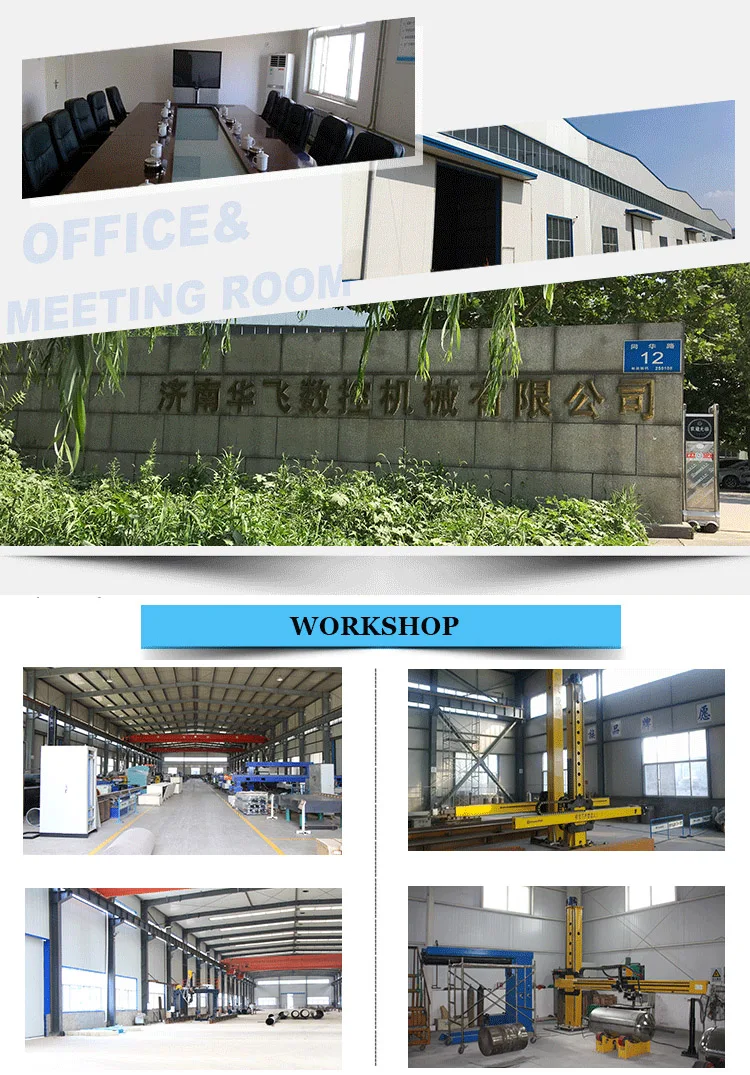

Company Profile
Since established, Jinan Huafei CNC Machine Co., Ltd. has focused on introducing and cultivating high-tech talents and takes it as a development strategy. at present, many professionals have been brought together who specialize in researching and developing of uncoiling and leveling machines, CNC welding, and cutting equipment. technical strength is always cherished as the core competitiveness of our company. With constant efforts of all staff, our products have been sold well in the domestic market and exported to many countries in the world, including Australia, Indonesia, India, Burma, Spain, Brasil, Peru, Russia, Azerbaijan, KZ, UZ, Sri Lanka, etc. During the establishing the national brand of Huafei, we always hold the responsibility of cultural communication between China and the world.
Product packaging
FAQ

1. Does your company accept the customized offer, we have a special need.
HUAFEI CNC is a company that focuses on research and manufacture of modular CNC machines. We have very rich experience and strong
machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long
as you have a certain amount of needs.
2. What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
3. Does your company accept CIF price?
CIF price includes the shipping cost of the CNC machine which needs to quote according to the different destination ports and
various in different months. Please contact us when you have such a need.
CIF price also includes marine premium which is 2‰ of 1.1*total amount.
4. What are your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation.
The exported CNC machine is all be packed by a wooden case which can be fixed into a 40 HQ.
5.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any
questions, please email us for consultation.
6. Does MC have a maintenance manual and operation manual?
Each CNC machine leaving the factory will be along with a related series or model the English instructions including maintenance manual and operation manual. Attached documentation may also include CNC controller instruction, parts instruction you bought(like
a rotary table, oil cooler).
