48m concrete pump truck for sale,concrete pump mixer truck

FOB Referentie prijs:Krijg recentste prijs
US$ 150.000,00 - US$ 500.000,00 / Set | 1 Set/sets (Min. Order)
modelnummer:
Vermogen( w):
Levertijd::
Hoeveelheid(sets) 1 - 1 >1
Geschatte tijd (in dagen) 15 Onderhandelbaar
Maatwerk:
Afbeeldingen bewerken (Min. Order: 1 sets)
Aangepaste verpakking (Min. Order: 1 sets)

Meer

Aangepast logo (Min. Order: 1 sets) Minder
rapport Verdachte Activiteit
Overzicht:
Snelle gegevens
Afmetingen( l* w* h):
13990x2500x4000mm
gewicht:
38t/42t
garantie:
1 jaar
After- sales service:
Video technische ondersteuning, Veld installatie, inbedrijfstelling en training, Veld onderhoud en reparatie service, Gratis onderdelen, Online ondersteuning
Toepasselijk Industrie:
Bouw werkt
staat:
Nieuw
power type:
Diesel
plaats van herkomst:
Henan, China
naam van het merk:
FOCUS Concrete pump truck
certificering:
TUV, ISO, CCC
concrete pump truck chassis:
ISUZU or HOWO
bucket volume:
700L
output capacity:
125 cbm/h
fuel consumption:
38L/100km
max. engine output torque:
1863/1460n.m(1100r/min)
quantity of boom:
4(concrete pump mixer truck)
rotary range of boom:
91/180/180/180/270°
operation radius:
43.7m/47.8m
operation height:
44.7m/51.8m
Name:
48m concrete pump truck for sale,concrete pump mixer truck
Leveringsvermogen
Leveringsvermogen:
60 Set/Sets per Month 48m concrete pump truck for sale,concrete pump mixer truck
Verpakking en verzending
Verpakkingsdetails
Ro-Ro Vessel or Bulk Cargo Ship for concrete pump mixer truck
48m concrete pump truck for sale,concrete pump mixer truck
Port
Qingdao, China
Levertijd: :
Hoeveelheid(sets) 1 - 1 >1
Geschatte tijd (in dagen) 15 Te overleggen
Product Description

 48m concrete pump truck for sale,concrete pump mixer truck

Concrete Pump Trucks The FOCUS Truck-mounted Concrete Pump with Boom (or FOCUS Concrete Pump Truck) is developed by FOCUS Machinery on the basis of drawing on advanced domestic and foreign experience and using advanced modern computer simulation techniques to systematically analyze the effect of changes in various parameters like stress, displacement and natural frequency on the boom’s fatigue life. Meantime, FOCUS Machinery optimized the design of the hydraulic system, adopted the latest free fluid technique and greatly lessened the impact of pumping commutation on the distributing boom. In the boom structure optimization and the hydraulic system design, FOCUS Machinery has obtained many patents. The consummate control of product quality, perfect techniques of product manufacturing and strict procedures of quality inspection make the FOCUS Pump Truck a leading product in China and an advanced product in the world. All the steel plates for the boom system are high-strength cold rolling steel plates made by the Swedish company SSAB. The yield strength of the plates exceeds 900Mpa, which ensures that the boom system has high strength and light weight. The boom system’s distributing pipe, landing legs, oil tank and so on have all received 100% stress-removing treatment after welding. Every welding seam has passed the 100% undamaged and crack detection or X-ray radial check to avoid any tiny defects and to make the machine more enduring.
The slewing bearing for the boom system is made by ROTHE ERDE Company from Germany or Larry Olisa Company from Italy. The 42CrMo texture of the slewing bearing ensures its higher strength and longer service life.

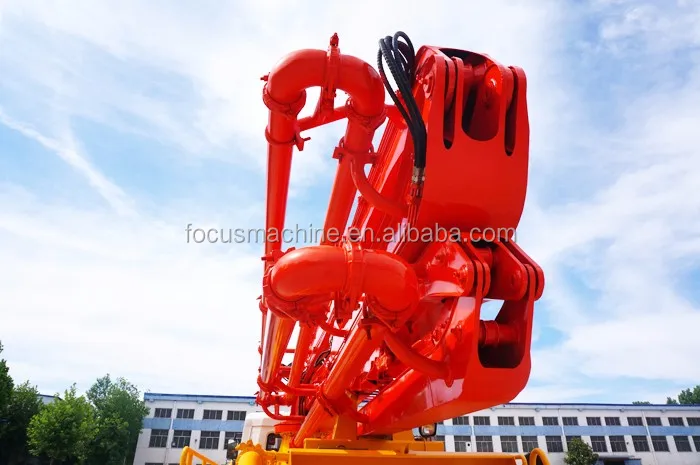

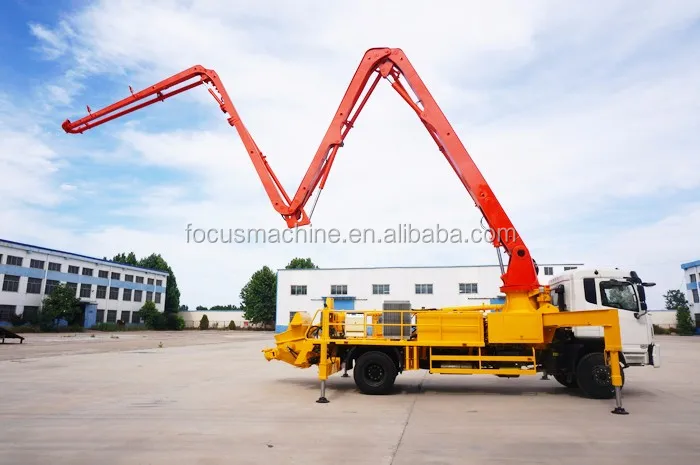

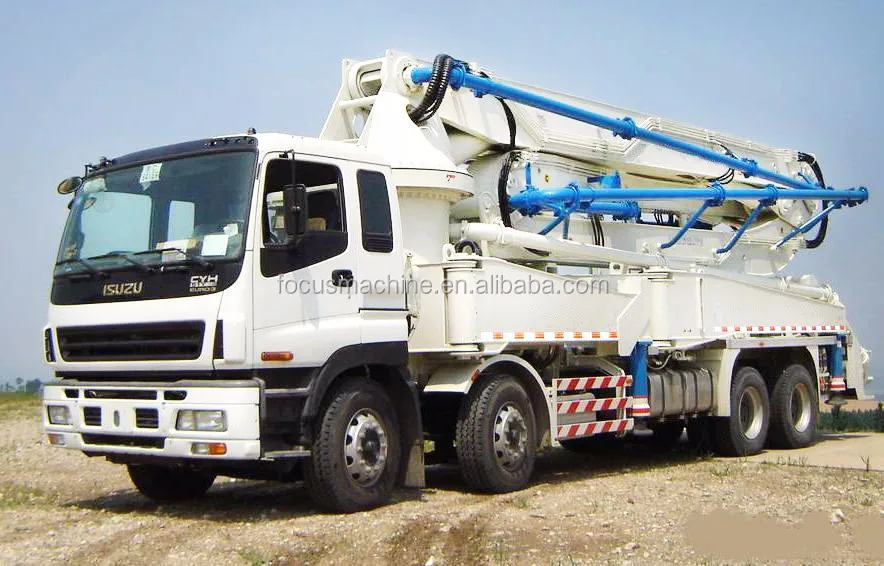

Detailed Images

 48m concrete pump truck for sale,concrete pump mixer truck

Designed on the basis of accurate data from finite element analysis and dynamics simulation analysis, the boom system has a scientific structure and excellent performance. Besides, stress and strain tests are conducted by the national test center to verify the agreement between the calculation and analysis result of the boom structure and its actual working condition. The design of FOCUS Pump Truck adopts an international purchase strategy, and all its key components are world-famous brands which have the following features:


1. The big-diameter conveying cylinder has a strong suction ability and can afford large pumping flow.



2. The HBC wireless remote-control unit imported with original German packaging is light in weight and easy to carry. The operator can put the distributing boom in place simply by operating the handle bars.



3. The slewing speed of the boom can be regulated through the stepless control device.


4.The stretching speed of the distributing boom can be regulated through the quick-and-slow stepless control device.

Parameters

48m concrete pump truck for sale,concrete pump mixer truck

Parameter
unit
HDT5380THB-48/5
HDT5420THB-52/5
output in theory
m3/h
125
125
bucket volume
L
700
700
height of top surface of bucket
mm
1400
1400
model of distribution valve

S Valve
S Valve
max. operation radius
m
43.7
47.8
max. operation height
m
47.7
51.8
max. operation depth
m
34.3
39.8
open height of boom
mm
9065
9400
distance between front landing legs
mm
9780
10295
diameter of delivery pipe
mm
125
125
quantity of boom

5
5
rotary angle of each boom
°
91/180/180/180/270
90/180/180/180/270
wire line control distance
m
33
33
remote control distance
m
200
200
max. speed
km/h
89
80
min. turn radius
mm
11900
12500
brake distance
m
10
10
chassis model

ISUZU CYH51Y
ISUZU CYH51Y
max. engine output power
kw
287(2200r/min)
259(2100r/min)
max. engine output torque
n.m
1863(1100r/min)
1460(1100r/min)
max, gradient ability
%
37
37
fuel consumption
L/100km
38
38
out dimension
L/100km
36.6
34
(LxWxH)
mm
13300x2500x4000
13990x2500x4000

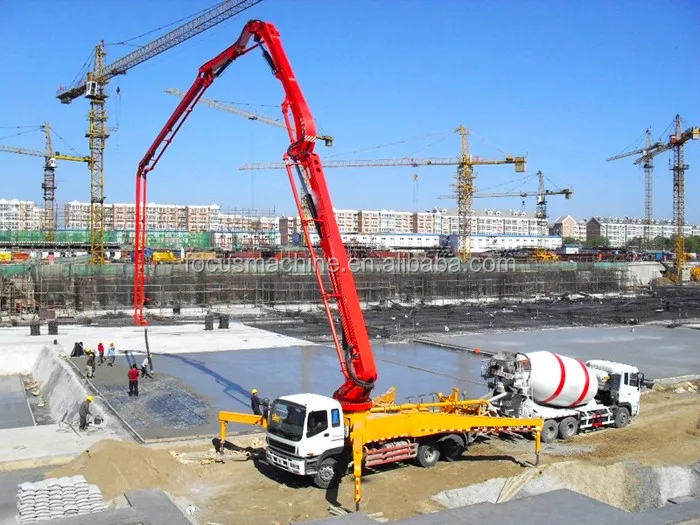

Installed&Operat
Certifications

48m concrete pump truck for sale,concrete pump mixer truck

1.for concrete pumping
2.ISUZU Chassis,low oil consumption,great mobility;
3.ISO and CE certified
